Product finding

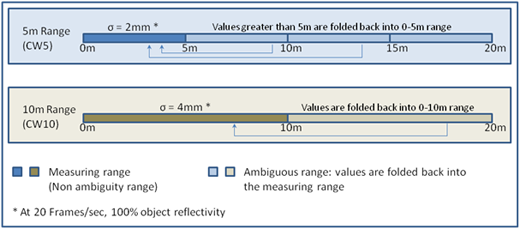

Range / Accuracy 5 m  10m   Range vs. Accuracy

Longer measurement range and better measurement precision have to be compromised.
A camera with a measurement range of 10m will have about 2 times more noise (σ)
than a camera with 5m range under similar measuring condition (absolute precision
unchanged). The trade-off between measurement range and measurement accuracy
is highly dependent on the requirements of the end application. Please note that
the measurement range definition differs from the traditional definition used for 2D cameras.

Range vs Accuracy

IP ratings definition:

The IP rating is coded as follows:
First Number: classifies the degree of protection against access to hazardous parts of the
camera (e.g. electrical parts, moving parts) and intrusion of objects or other solid matters
such as dust.
Second Number: classifies the degree of protection against the intrusion of liquids into the
housing the housing.
IP40: Protected against ingress of objects larger than 1mm;
no access to hazardous parts of the camera for objects smaller than 1mm.
Not protected against ingression of water (in particular the USB or Ethernet connectors)
IP67: Protected against any intrusion, including dust;
complete protection against access to hazardous parts.
No ingression of water in harmful quantities when camera immersed in water at up to 1 meter,
for a limited time of 30 minutes

Communication USB Ethernet  USB / Ethernet Info

Communication Interface:

Standard USB 2.0 or Fast Ethernet (100Mbits/sec) communication interfaces are available.

Cameras matching your selection

SR4000 accessories

Cables
00200006  USB Cable  1.8 meters  USB2.0 Type A - 5pin Mini
00200008  Ethernet Cable  1 meter  RJ-45 connectors
00200007  Trigger Cable  2.0 meters  Lumberg M8 Female 4-pin
Power Supplies and Cords
00200001  Power Supply  Power Supply 12V/2A  Lumberg M8 Female 3-pin
00200003  Cord  Germany / France  Schuko type � IEC C13
00200004  Cord  Switzerland  SEV 10/11 � IEC C13
00200005  Cord  US / Japan  NEMA 5/15 � IEC C13
00200009  Cord  UK  BS 1363 � IEC C13
Notes
1. Camera, cable(s), and power supply should be ordered as separate line items.
2. Each camera shipment includes CD with manuals, visualization software, API, and software drivers.
